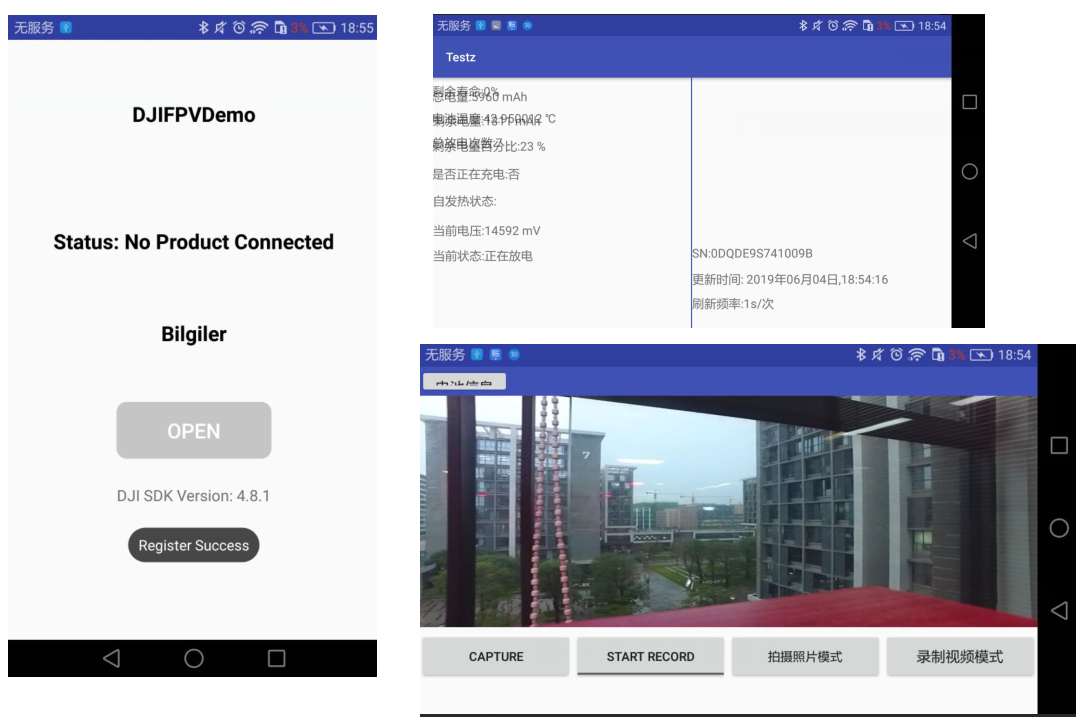

先看效果图吧：

1.大疆无人机官方文档地址：，我们做这个无人机开发1，需要先去大疆官网看文档，然后申请一个大疆账号，然后去申请appkey，注意这个appkey很重要。不申请的无法运行

2.配置环境，添加依赖，在app下面的builder.gradle

apply plugin: 'com.android.application'android {    compileSdkVersion 28    buildToolsVersion "28.0.1"    defaultConfig {        applicationId "com.example.administrator.testz"        minSdkVersion 19        targetSdkVersion 28        versionCode 1        versionName "1.0"        multiDexEnabled true        testInstrumentationRunner "android.support.test.runner.AndroidJUnitRunner"        ndk {            abiFilters 'armeabi-v7a'        }    }    buildTypes {        release {            minifyEnabled false            proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'        }    }    packagingOptions {        exclude 'META-INF/rxjava.properties'    }    packagingOptions{        doNotStrip "*/*/libdjivideo.so"        doNotStrip "*/*/libSDKRelativeJNI.so"        doNotStrip "*/*/libFlyForbid.so"        doNotStrip "*/*/libduml_vision_bokeh.so"        doNotStrip "*/*/libyuv2.so"        doNotStrip "*/*/libGroudStation.so"        doNotStrip "*/*/libFRCorkscrew.so"        doNotStrip "*/*/libUpgradeVerify.so"        doNotStrip "*/*/libFR.so"    }}dependencies {    implementation fileTree(dir: 'libs', include: ['*.jar'])    androidTestImplementation('com.android.support.test.espresso:espresso-core:2.2.2', {        exclude group: 'com.android.support', module: 'support-annotations'    })    implementation 'com.android.support:appcompat-v7:26.0.0-alpha1'    testImplementation 'junit:junit:4.12'    //====dividing    implementation 'com.android.support:multidex:1.0.1'    // dividing    implementation 'com.dji:dji-sdk:4.8.1'    implementation 'com.dji:dji-uxsdk:4.8.1'    compileOnly 'com.dji:dji-sdk-provided:4.8.1'}

2.清单文件，注意清单文件我写注释的地方，那个很重要，还有就是appkey，你们需要自己去注册

3.验证无人机环境

package com.example.administrator.testz;import android.app.Application;import android.content.Context;import com.secneo.sdk.Helper;/** * Created by wrs on 2019/6/4,10:47 * projectName: Testz * packageName: com.example.administrator.testz */public class MApplication extends Application {    private FPVDemoApplication fpvDemoApplication;    @Override    protected void attachBaseContext(Context base) {        super.attachBaseContext(base);        Helper.install(MApplication.this);        if (fpvDemoApplication == null) {            fpvDemoApplication = new FPVDemoApplication();            fpvDemoApplication.setContext(this);        }    }    @Override    public void onCreate() {        super.onCreate();        fpvDemoApplication.onCreate();    }}

4.无人机绑定注册

package com.example.administrator.testz;import android.app.Application;import android.content.Context;import android.content.Intent;import android.os.Build;import android.os.Handler;import android.os.Looper;import android.support.v4.content.ContextCompat;import android.util.Log;import android.widget.Toast;import dji.common.error.DJIError;import dji.common.error.DJISDKError;import dji.sdk.base.BaseComponent;import dji.sdk.base.BaseProduct;import dji.sdk.battery.Battery;import dji.sdk.camera.Camera;import dji.sdk.products.Aircraft;import dji.sdk.products.HandHeld;import dji.sdk.sdkmanager.DJISDKManager;/** * Created by wrs on 2019/6/4,10:49 * projectName: Testz * packageName: com.example.administrator.testz */public class FPVDemoApplication extends Application {    public static final String FLAG_CONNECTION_CHANGE = "fpv_tutorial_connection_change";    private DJISDKManager.SDKManagerCallback mDJISDKManagerCallback;    private static BaseProduct mProduct;    public Handler mHandler;    private Application instance;    public void setContext(Application application) {        instance = application;    }    @Override    public Context getApplicationContext() {        return instance;    }    public FPVDemoApplication() {    }    /**     * 此函数用于获取DJIBaseProduct的实例。     * 如果没有连接产品，则返回null。     */    public static synchronized BaseProduct getProductInstance() {        if (null == mProduct) {            mProduct = DJISDKManager.getInstance().getProduct();        }        return mProduct;    }    //电池    public static synchronized Battery getBatteryInstance(){        if (getProductInstance() == null){            return null;        }        Battery battery = null;        BaseProduct productInstance = getProductInstance();        if (productInstance instanceof Aircraft){            battery = ((Aircraft)productInstance).getBattery();            //手持云台        }else if (productInstance instanceof HandHeld){        }        return battery;    }    //相机    public static synchronized Camera getCameraInstance() {        if (getProductInstance() == null) {            return null;        }        Camera camera = null;        if (getProductInstance() instanceof Aircraft) {            camera = ((Aircraft) getProductInstance()).getCamera();        } else if (getProductInstance() instanceof HandHeld) {            camera = ((HandHeld) getProductInstance()).getCamera();        }        return camera;    }    @Override    public void onCreate() {        super.onCreate();        mHandler = new Handler(Looper.getMainLooper());        /**         * 启动SDK服务时，将使用接口DJISDKManager.DJISDKManagerCallback的实例进行监听          SDK注册结果和产品更改。         */        mDJISDKManagerCallback = new DJISDKManager.SDKManagerCallback() {            //Listens to the SDK registration result            @Override            public void onRegister(DJIError djiError) {                if (djiError== DJISDKError.REGISTRATION_SUCCESS){                    Handler handler = new Handler(Looper.getMainLooper());                    handler.post(new Runnable() {                        @Override                        public void run() {                            //注册成功                            Toast.makeText(getApplicationContext(), "Register Success", Toast.LENGTH_LONG).show();                        }                    });                    DJISDKManager.getInstance().startConnectionToProduct();                }else{                    Handler handler = new Handler(Looper.getMainLooper());                    handler.post(new Runnable() {                        @Override                        public void run() {                            Toast.makeText(getApplicationContext(), "Register sdk fails, check network is available", Toast.LENGTH_LONG).show();                        }                    });                }                Log.e("TAG", djiError.toString());            }            @Override            public void onProductDisconnect() {                Log.d("TAG", "onProductDisconnect");                notifyStatusChange();            }            @Override            public void onProductConnect(BaseProduct baseProduct) {                Log.d("TAG", String.format("onProductConnect newProduct:%s", baseProduct));                notifyStatusChange();            }            @Override            public void onComponentChange(BaseProduct.ComponentKey componentKey, BaseComponent oldComponent, BaseComponent newComponent) {                if (newComponent != null) {                    newComponent.setComponentListener(new BaseComponent.ComponentListener() {                        @Override                        public void onConnectivityChange(boolean isConnected) {                            Log.d("TAG", "onComponentConnectivityChanged: " + isConnected);                            notifyStatusChange();                        }                    });                }                Log.d("TAG",                        String.format("onComponentChange key:%s, oldComponent:%s, newComponent:%s",                                componentKey,                                oldComponent,                                newComponent));            }        };        //Check the permissions before registering the application for android system 6.0 above.        int permissionCheck = ContextCompat.checkSelfPermission(getApplicationContext(), android.Manifest.permission.WRITE_EXTERNAL_STORAGE);        int permissionCheck2 = ContextCompat.checkSelfPermission(getApplicationContext(), android.Manifest.permission.READ_PHONE_STATE);        if (Build.VERSION.SDK_INT < Build.VERSION_CODES.M || (permissionCheck == 0 && permissionCheck2 == 0)) {            //This is used to start SDK services and initiate SDK.            DJISDKManager.getInstance().registerApp(getApplicationContext(), mDJISDKManagerCallback);            Toast.makeText(getApplicationContext(), "registering, pls wait...", Toast.LENGTH_LONG).show();        } else {            Toast.makeText(getApplicationContext(), "Please check if the permission is granted.", Toast.LENGTH_LONG).show();        }    }    private void notifyStatusChange(){        mHandler.removeCallbacks(updateRunnable);        mHandler.postDelayed(updateRunnable,500);    }    private Runnable updateRunnable = new Runnable() {        @Override        public void run() {            Intent intent = new Intent(FLAG_CONNECTION_CHANGE);            getApplicationContext().sendBroadcast(intent);        }    };}

5.动态权限申请，广播注册

package com.example.administrator.testz;import android.Manifest;import android.app.Activity;import android.content.BroadcastReceiver;import android.content.Context;import android.content.Intent;import android.content.IntentFilter;import android.content.pm.PackageManager;import android.os.AsyncTask;import android.os.Build;import android.os.Bundle;import android.support.annotation.NonNull;import android.support.v4.app.ActivityCompat;import android.support.v4.content.ContextCompat;import android.support.v7.app.AppCompatActivity;import android.util.Log;import android.view.View;import android.widget.Button;import android.widget.TextView;import android.widget.Toast;import java.util.ArrayList;import java.util.List;import java.util.concurrent.atomic.AtomicBoolean;import dji.common.error.DJIError;import dji.common.error.DJISDKError;import dji.log.DJILog;import dji.sdk.base.BaseComponent;import dji.sdk.base.BaseProduct;import dji.sdk.products.Aircraft;import dji.sdk.sdkmanager.DJISDKManager;/** * Created by wrs on 2019/6/4,10:46 * projectName: Testz * packageName: com.example.administrator.testz */public class ConnectionActivity extends Activity implements View.OnClickListener {    private static final String TAG = ConnectionActivity.class.getName();    private TextView mTextConnectionStatus;    private TextView mTextProduct;    private TextView mVersionTv;    private Button mBtnOpen;    private static final String[] REQUIRED_PERMISSION_LIST = new String[]{            Manifest.permission.VIBRATE,            Manifest.permission.INTERNET,            Manifest.permission.ACCESS_WIFI_STATE,            Manifest.permission.WAKE_LOCK,            Manifest.permission.ACCESS_COARSE_LOCATION,            Manifest.permission.ACCESS_NETWORK_STATE,            Manifest.permission.ACCESS_FINE_LOCATION,            Manifest.permission.CHANGE_WIFI_STATE,            Manifest.permission.WRITE_EXTERNAL_STORAGE,            Manifest.permission.BLUETOOTH,            Manifest.permission.BLUETOOTH_ADMIN,            Manifest.permission.READ_EXTERNAL_STORAGE,            Manifest.permission.READ_PHONE_STATE    };    private List

     missingPermission = new ArrayList<>();    private AtomicBoolean isRegistrationInProgress = new AtomicBoolean(false);    private static final int REQUEST_PERMISSION_CODE = 12345;    private Boolean isConnected = false;  //true表示已连接    @Override    protected void onCreate(Bundle savedInstanceState) {        super.onCreate(savedInstanceState);        checkAndRequestPermissions();        setContentView(R.layout.activity_connection);        initUI();        //广播接收器        IntentFilter filter = new IntentFilter();        filter.addAction(FPVDemoApplication.FLAG_CONNECTION_CHANGE);        registerReceiver(mReceiver, filter);    }    //动态权限申请    private void checkAndRequestPermissions() {        for (String eachPermission : REQUIRED_PERMISSION_LIST) {            if (ContextCompat.checkSelfPermission(this, eachPermission) != PackageManager.PERMISSION_GRANTED) {                missingPermission.add(eachPermission);            }        }        // Request for missing permissions        if (!missingPermission.isEmpty() && Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) {            ActivityCompat.requestPermissions(this,                    missingPermission.toArray(new String[missingPermission.size()]),                    REQUEST_PERMISSION_CODE);        }    }    @Override    public void onRequestPermissionsResult(int requestCode, @NonNull String[] permissions, @NonNull int[] grantResults) {        super.onRequestPermissionsResult(requestCode, permissions, grantResults);        if (requestCode == REQUEST_PERMISSION_CODE) {            for (int i = grantResults.length - 1; i > 0; i--) {                if (grantResults[i] == PackageManager.PERMISSION_GRANTED) {                    missingPermission.remove(permissions[i]);                }            }        }        //权限有了  开始发送广播        if (missingPermission.isEmpty()) {            startSDKRegistration();        } else {            showToast("Missing permissions!");        }    }    private void startSDKRegistration() {        if (isRegistrationInProgress.compareAndSet(false, true)) {            AsyncTask.execute(new Runnable() {                @Override                public void run() {                    showToast("registering,pls wait...");                    DJISDKManager.getInstance().registerApp(getApplicationContext(), new DJISDKManager.SDKManagerCallback() {                        @Override                        public void onRegister(DJIError djiError) {                            if (djiError == DJISDKError.REGISTRATION_SUCCESS) {                                DJILog.e("App registration", DJISDKError.REGISTRATION_SUCCESS.getDescription());                                DJISDKManager.getInstance().startConnectionToProduct();                                showToast("Register Success");                            } else {                                showToast("Register sdk fails,check network is available");                            }                            Log.e(TAG, djiError.getDescription());                        }                        @Override                        public void onProductDisconnect() {                            Log.e(TAG, "onProductDisconnect");                            showToast("Produce DisConnected");                        }                        @Override                        public void onProductConnect(BaseProduct baseProduct) {                            Log.e(TAG, String.format("onProductConnect newProduce:%s", baseProduct));                            showToast("Produce Connected");                        }                        @Override                        public void onComponentChange(BaseProduct.ComponentKey componentKey, BaseComponent oldComponent, BaseComponent newComponent) {                            if (newComponent != null) {                                newComponent.setComponentListener(new BaseComponent.ComponentListener() {                                    @Override                                    public void onConnectivityChange(boolean isConnected) {                                        Log.d(TAG, "onComponentConnectivityChanged: " + isConnected);                                    }                                });                            }                            Log.d(TAG,                                    String.format("onComponentChange key:%s, oldComponent:%s, newComponent:%s",                                            componentKey,                                            oldComponent,                                            newComponent));                        }                    });                }            });        }    }    private void showToast(final String toastMsg) {        runOnUiThread(new Runnable() {            @Override            public void run() {                Toast.makeText(getApplicationContext(), "" + toastMsg, Toast.LENGTH_LONG).show();            }        });    }    private void initUI() {        mTextConnectionStatus = (TextView) findViewById(R.id.text_connection_status);        mTextProduct = (TextView) findViewById(R.id.text_product_info);        mBtnOpen = (Button) findViewById(R.id.btn_open);        mBtnOpen.setOnClickListener(this);        mBtnOpen.setEnabled(false);        mVersionTv = (TextView) findViewById(R.id.textView2);        mVersionTv.setText(getResources().getString(R.string.sdk_version, DJISDKManager.getInstance().getSDKVersion()));    }    @Override    public void onClick(View v) {        switch (v.getId()) {            case R.id.btn_open:                Intent intent = new Intent(ConnectionActivity.this, MainActivity.class);                startActivity(intent);                break;        }    }    protected BroadcastReceiver mReceiver = new BroadcastReceiver() {        @Override        public void onReceive(Context context, Intent intent) {            //广播            refreshSDKRelativeUI();        }    };    private void refreshSDKRelativeUI() {        BaseProduct mProduct = FPVDemoApplication.getProductInstance();        // mProduct.isConnected() true表示已连接 false 表示未连接        if (null != mProduct && mProduct.isConnected()) {           // FileUtil.CONNECT = true;          //  OttoBus.getInstance().post(new BusData(mProduct.isConnected()));            Intent intent = new Intent(ConnectionActivity.this, MainActivity.class);            startActivity(intent);        } else {            showToast("无人机绑定失败");        }    }    @Override    protected void onDestroy() {        super.onDestroy();        unregisterReceiver(mReceiver);    }}


6.ConnectionActivity布局

7.拍照

package com.example.administrator.testz;import android.app.Activity;import android.content.Intent;import android.graphics.SurfaceTexture;import android.os.Handler;import android.support.annotation.NonNull;import android.support.v7.app.AppCompatActivity;import android.os.Bundle;import android.util.Log;import android.view.TextureView;import android.view.View;import android.widget.Button;import android.widget.CompoundButton;import android.widget.ImageView;import android.widget.TextView;import android.widget.Toast;import android.widget.ToggleButton;import dji.common.camera.SettingsDefinitions;import dji.common.camera.SystemState;import dji.common.error.DJIError;import dji.common.product.Model;import dji.common.useraccount.UserAccountState;import dji.common.util.CommonCallbacks;import dji.log.IFileFormat;import dji.sdk.base.BaseProduct;import dji.sdk.camera.Camera;import dji.sdk.camera.VideoFeeder;import dji.sdk.codec.DJICodecManager;import dji.sdk.useraccount.UserAccountManager;public class MainActivity extends Activity implements TextureView.SurfaceTextureListener, View.OnClickListener {    private static final String TAG = MainActivity.class.getName();    protected VideoFeeder.VideoDataListener mReceivedVideoDataListener = null;    protected DJICodecManager mCodecManager = null;    protected TextureView mVideoSurface = null;    private Button mCaptureBtn, mShootPhotoModeBtn, mRecordVideoModeBtn,btn_battery;    private ToggleButton mRecordBtn;    private TextView recordingTime;    private ImageView iv_connected;    private Handler handler;    //otto同样需要注册和取消注册、订阅事件    private boolean isConnect;    @Override    protected void onCreate(Bundle savedInstanceState) {        super.onCreate(savedInstanceState);        setContentView(R.layout.activity_main);        handler = new Handler();        initUI();        //用于接收摄像机实时视图的原始H264视频数据的回调        mReceivedVideoDataListener = new VideoFeeder.VideoDataListener() {            @Override            public void onReceive(byte[] videoBuffer, int size) {                if (mCodecManager != null) {                    mCodecManager.sendDataToDecoder(videoBuffer, size);                }            }        };        final Camera camera = FPVDemoApplication.getCameraInstance();        if (camera != null) {            camera.setSystemStateCallback(new SystemState.Callback() {                @Override                public void onUpdate(@NonNull SystemState cameraSystemState) {                    if (null != cameraSystemState) {                        final int recordTime = cameraSystemState.getCurrentVideoRecordingTimeInSeconds();                        int minutes = (recordTime % 3600) / 60;                        int seconds = recordTime % 60;                        final String timeString = String.format("%02d:%02d", minutes, seconds);                        final boolean isVideorecording = cameraSystemState.isRecording();                        MainActivity.this.runOnUiThread(new Runnable() {                            @Override                            public void run() {                                recordingTime.setText(timeString);                                if (isVideorecording) {                                    recordingTime.setVisibility(View.VISIBLE);                                } else {                                    recordingTime.setVisibility(View.INVISIBLE);                                }                            }                        });                    }                }            });        }    }    protected void onProductChange() {        initPreviewer();        loginAccount();    }    private void loginAccount() {        UserAccountManager.getInstance().logIntoDJIUserAccount(this, new CommonCallbacks.CompletionCallbackWith

    () {            @Override            public void onSuccess(UserAccountState userAccountState) {                Log.e(TAG, "Login success");            }            @Override            public void onFailure(DJIError djiError) {                showToast("Login Error" + djiError.getDescription());            }        });    }    @Override    protected void onResume() {        super.onResume();        initPreviewer();        onProductChange();        if (mVideoSurface == null) {            Log.e(TAG, "mVideosurface is nnull");        }    }    @Override    protected void onPause() {        super.onPause();        uninitPreviewer();    }    @Override    protected void onStop() {        super.onStop();    }    public void onReturn(View view) {        this.finish();    }    @Override    protected void onDestroy() {        super.onDestroy();        uninitPreviewer();    }    private void initUI() {        mVideoSurface = (TextureView) findViewById(R.id.video_previewer_surface);        iv_connected = (ImageView) findViewById(R.id.iv_connected);        recordingTime = (TextView) findViewById(R.id.timer);        mCaptureBtn = (Button) findViewById(R.id.btn_capture);        btn_battery = (Button) findViewById(R.id.btn_battery);        mRecordBtn = (ToggleButton) findViewById(R.id.btn_record);        mShootPhotoModeBtn = (Button) findViewById(R.id.btn_shoot_photo_mode);        mRecordVideoModeBtn = (Button) findViewById(R.id.btn_record_video_mode);        if (null != mVideoSurface) {            mVideoSurface.setSurfaceTextureListener(this);        }        mCaptureBtn.setOnClickListener(this);        mRecordBtn.setOnClickListener(this);        mShootPhotoModeBtn.setOnClickListener(this);        mRecordVideoModeBtn.setOnClickListener(this);        recordingTime.setVisibility(View.INVISIBLE);        mRecordBtn.setOnCheckedChangeListener(new CompoundButton.OnCheckedChangeListener() {            @Override            public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) {                if (isChecked) {                    startRecord();                } else {                    stopRecord();                }            }        });        btn_battery.setOnClickListener(new View.OnClickListener() {            @Override            public void onClick(View v) {                Intent intent = new Intent(MainActivity.this,BattryActivity.class);                startActivity(intent);            }        });    }    private void initPreviewer() {        BaseProduct product = FPVDemoApplication.getProductInstance();        if (product == null || !product.isConnected()) {            showToast(getString(R.string.disconnected));        } else {            if (null != mVideoSurface) {                mVideoSurface.setSurfaceTextureListener(this);            }            if (!product.getModel().equals(Model.UNKNOWN_AIRCRAFT)) {                VideoFeeder.getInstance().getPrimaryVideoFeed().addVideoDataListener(mReceivedVideoDataListener);            }        }    }    private void uninitPreviewer() {        Camera camera = FPVDemoApplication.getCameraInstance();        if (camera != null) {            VideoFeeder.getInstance().getPrimaryVideoFeed().addVideoDataListener(null);        }    }    public void showToast(final String msg) {        runOnUiThread(new Runnable() {            @Override            public void run() {                Toast.makeText(MainActivity.this, msg, Toast.LENGTH_SHORT).show();            }        });    }    @Override    public void onSurfaceTextureAvailable(SurfaceTexture surface, int width, int height) {        if (mCodecManager == null) {            mCodecManager = new DJICodecManager(this, surface, width, height);        }    }    @Override    public void onSurfaceTextureSizeChanged(SurfaceTexture surface, int width, int height) {    }    @Override    public boolean onSurfaceTextureDestroyed(SurfaceTexture surface) {        if (mCodecManager != null) {            mCodecManager.cleanSurface();            mCodecManager = null;        }        return false;    }    @Override    public void onSurfaceTextureUpdated(SurfaceTexture surface) {    }    @Override    public void onClick(View v) {        switch (v.getId()) {            case R.id.btn_capture: {                captureAction();                break;            }            case R.id.btn_shoot_photo_mode: {                switchCameraMode(SettingsDefinitions.CameraMode.SHOOT_PHOTO);                break;            }            case R.id.btn_record_video_mode: {                switchCameraMode(SettingsDefinitions.CameraMode.RECORD_VIDEO);                break;            }            default:                break;        }    }    private void switchCameraMode(SettingsDefinitions.CameraMode cameraMode) {        Camera camera = FPVDemoApplication.getCameraInstance();        if (camera != null) {            camera.setMode(cameraMode, new CommonCallbacks.CompletionCallback() {                @Override                public void onResult(DJIError djiError) {                    if (djiError == null) {                        showToast("Switch Camera Mode Succeeded");                    } else {                        showToast(djiError.getDescription());                    }                }            });        }    }    private void captureAction() {        final Camera camera = FPVDemoApplication.getCameraInstance();        if (camera != null) {            SettingsDefinitions.ShootPhotoMode photoMode = SettingsDefinitions.ShootPhotoMode.SINGLE;            camera.setShootPhotoMode(photoMode, new CommonCallbacks.CompletionCallback() {                @Override                public void onResult(DJIError djiError) {                    if (null == djiError) {                        handler.postDelayed(new Runnable() {                            @Override                            public void run() {                                //延时2s执行                                camera.startShootPhoto(new CommonCallbacks.CompletionCallback() {                                    @Override                                    public void onResult(DJIError djiError) {                                        if (djiError == null) {                                            showToast("take photo :success");                                        } else {                                            showToast(djiError.getDescription());                                        }                                    }                                });                            }                        }, 2000);                    }                }            });        }    }    private void startRecord() {        final Camera camera = FPVDemoApplication.getCameraInstance();        if (camera != null) {            camera.startRecordVideo(new CommonCallbacks.CompletionCallback() {                @Override                public void onResult(DJIError djiError) {                    if (djiError == null) {                        showToast("Record video success");                    } else {                        showToast(djiError.getDescription());                    }                }            });        }    }    private void stopRecord() {        Camera camera = FPVDemoApplication.getCameraInstance();        if (camera != null) {            camera.stopRecordVideo(new CommonCallbacks.CompletionCallback() {                @Override                public void onResult(DJIError djiError) {                    if (djiError == null) {                        showToast("Stop recording success");                    } else {                        showToast(djiError.getDescription());                    }                }            });        }    }}


8.MainActivity布局

9.电池

package com.example.administrator.testz;import android.app.Activity;import android.os.Bundle;import android.support.v7.app.AppCompatActivity;import android.widget.TextView;import android.widget.Toast;import java.util.Date;import java.util.Timer;import java.util.TimerTask;import dji.common.battery.BatteryState;import dji.common.error.DJIError;import dji.common.util.CommonCallbacks;import dji.sdk.battery.Battery;import dji.sdk.camera.Camera;public class BattryActivity extends AppCompatActivity implements BatteryState.Callback{        /*         * view         */        private TextView createTimeTv;        private TextView createFreTv;        private TextView batteryFullChargeCapacityTv;        private TextView batteryChargeRemainingTv;        private TextView batteryChargeRemainingInPercentTv;        private TextView batteryIsBeingChargedTv;        private TextView batterySelfHeatingStateTv;        private TextView batteryVoltageTv;        private TextView batteryCurrentTv;        private TextView batteryLifetimeRemainingTv;        private TextView batteryTemperatureTv;        private TextView batteryNumberOfDischargesTv;        private TextView batterySnTv;        /*            流程参数         */        private Date createTime = new Date();//当前更新时间        //读取电池信息状态        private Timer timer = new Timer();        private Battery mBattery;        private TimerTask task = new TimerTask() {            @Override            public void run() {                BattryActivity.this.mBattery = FPVDemoApplication.getBatteryInstance();                if(mBattery != null){                    mBattery.setStateCallback(BattryActivity.this);                    mBattery.getSerialNumber(new CommonCallbacks.CompletionCallbackWith

    () {                        @Override                        public void onSuccess(final String s) {                            runOnUiThread(new Runnable() {                                @Override                                public void run() {                                    batterySnTv.setText("SN:"+s);                                }                            });                        }                        @Override                        public void onFailure(DJIError djiError) {                        }                    });                    task.cancel();                    timer.cancel();                }            }        };        @Override        protected void onCreate(Bundle savedInstanceState) {            super.onCreate(savedInstanceState);            setContentView(R.layout.activity_showbattery);            createFreTv = findViewById(R.id.tv_create_fre);            createTimeTv = findViewById(R.id.tv_create_time);            batteryFullChargeCapacityTv = findViewById(R.id.bfcctv);            batteryChargeRemainingTv = findViewById(R.id.bcrtv);            batteryChargeRemainingInPercentTv = findViewById(R.id.bcriptv);            batteryIsBeingChargedTv = findViewById(R.id.bibctv);            batterySelfHeatingStateTv = findViewById(R.id.bshstv);            batteryVoltageTv = findViewById(R.id.bvtv);            batteryCurrentTv = findViewById(R.id.bctv);            batteryLifetimeRemainingTv = findViewById(R.id.blrtv);            batteryTemperatureTv = findViewById(R.id.bttv);            batteryNumberOfDischargesTv = findViewById(R.id.bnodtv);            batterySnTv = findViewById(R.id.tv_sn);            //获取时间            timer.schedule(task,100,1000);        }        @Override        public void onUpdate(final BatteryState batteryState) {            if(batteryState == null){                return;            }            runOnUiThread(new Runnable() {                @Override                public void run() {                    //刷新当前更新时间                    Date nowDate= new Date();                    createTimeTv.setText("更新时间: "+ android.text.format.DateFormat.format("yyyy年MM月dd日,kk:mm:ss",nowDate));                    long fre = nowDate.getTime() - createTime.getTime();                    createFreTv.setText("刷新频率:"+(fre/1000)+"s/次");                    createTime = nowDate;                    //更新状态                    try {                        //总能量                        batteryFullChargeCapacityTv.setText("总电量:"+batteryState.getFullChargeCapacity()+" mAh");                        //剩余能量                        batteryChargeRemainingTv.setText("剩余电量:"+batteryState.getChargeRemaining()+" mAh");                        //剩余电量百分比                        batteryChargeRemainingInPercentTv.setText("剩余电量百分比:"+batteryState.getChargeRemainingInPercent()+" %");                        //是否正在充电                        batteryIsBeingChargedTv.setText("是否正在充电:"+(batteryState.isBeingCharged()?"是":"否"));                        //自发热状态                        if (batteryState.getSelfHeatingState() != null) {                            batterySelfHeatingStateTv.setText("自发热状态:"+batteryState.getSelfHeatingState().value());                        }                        //电压                        batteryVoltageTv.setText("当前电压:"+batteryState.getVoltage()+" mV");                        //当前状态                        batteryCurrentTv.setText("当前状态:"+(batteryState.getCurrent() >0?"正在充电":"正在放电"));                        //剩余寿命                        batteryLifetimeRemainingTv.setText("剩余寿命:"+batteryState.getLifetimeRemaining()+"%");                        //电池温度                        batteryTemperatureTv.setText("电池温度:"+batteryState.getTemperature()+" ℃");                        //总放电次数                        batteryNumberOfDischargesTv.setText("总放电次数:"+batteryState.getNumberOfDischarges());                    }catch (Exception e){                        Toast.makeText(BattryActivity.this,e.getMessage(),Toast.LENGTH_LONG).show();                    }                }            });        }    }


10.电池布局

写到这里结束了，这里只是两个简单的使用，大疆无人机的官方demo更加的详细，大家可以参考官方的程序，我这个程序是精简化的代码，但是看起来稍微简化了一些，详细的还是建议看官方的代码，

遇到的坑！：

1.appkey没注册

2.清单文件，有一个intent广播意图是用于启动应用界面的，官方的那个activity什么都没有，你必须修改一下，不然就点击什么反应都没有，无法启动

3.连接状态，包括已连接和未连接，在refreshSDKRelativeUI里面，我想把这个状态弄出来，死活不行，大家如果想要这个状态，可以把这个activity作为主Activity，然后其他界面用fragment的方式进行，本例子没做这个功能，

4.拍照的时候，必须插入SD卡，不然无法返回scuess ，就是拍照失败的意思，然后，插入SD卡后，本例子必须设置一下拍照的模式，才可以成功，但是官方demo可以直接拍照，。这一点以后有机会研究一下，这个地方还没有优化，

5.有了sd卡，并且拍照成功后，其实在SD里面就已经存储了照片，在/根目录/DCIM/100MEDIA  这个目录里面

其他的 也没啥了  把这些代码复制一下，连上飞机，就可以控制了，但是在没这做这个之前，觉得还是很麻烦的，现在看很简单，最后联系方式qq：2494075190
